Dimplex - Revillusion Portrait 36" Built-in Electric Firebox With Front Glass and Plug Kit

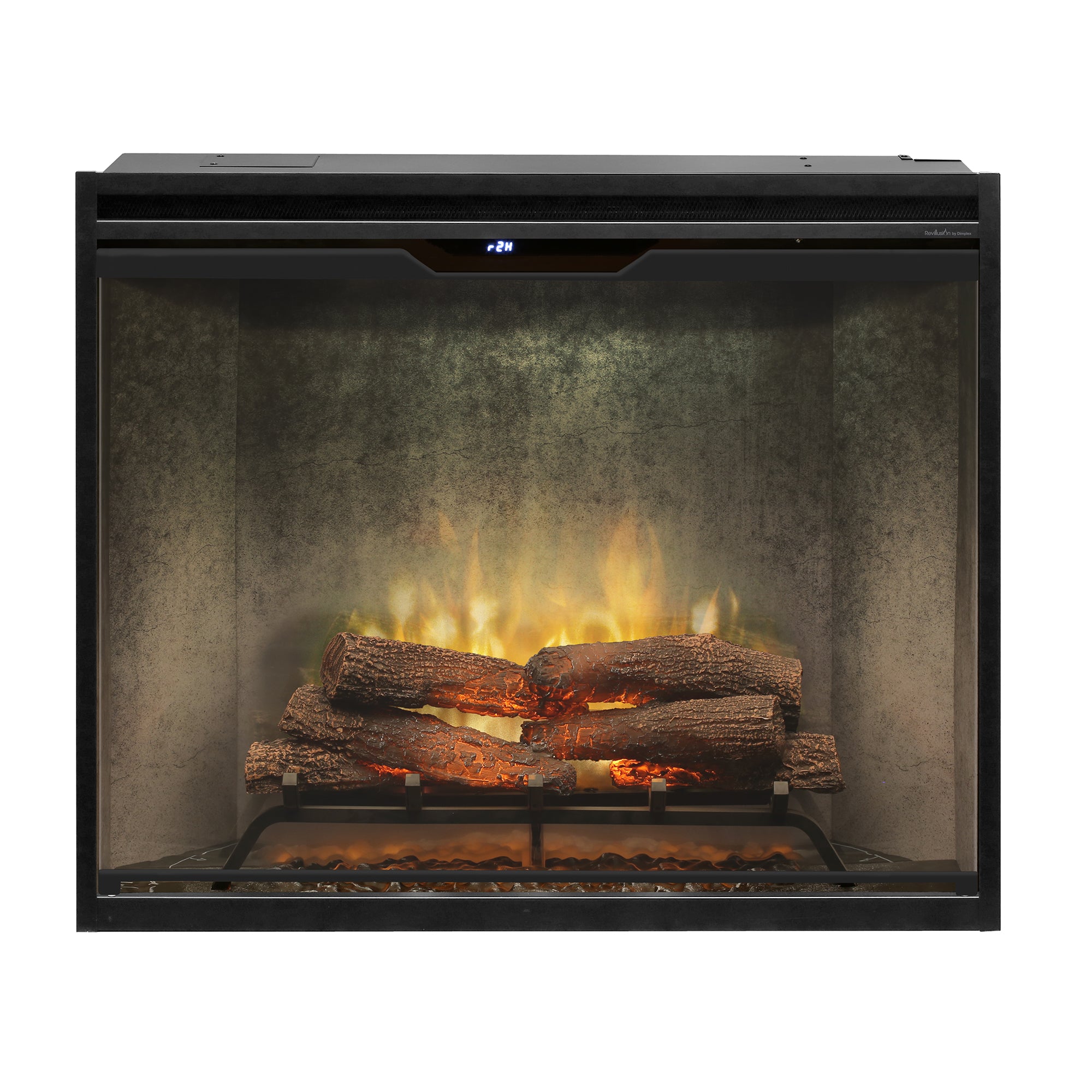

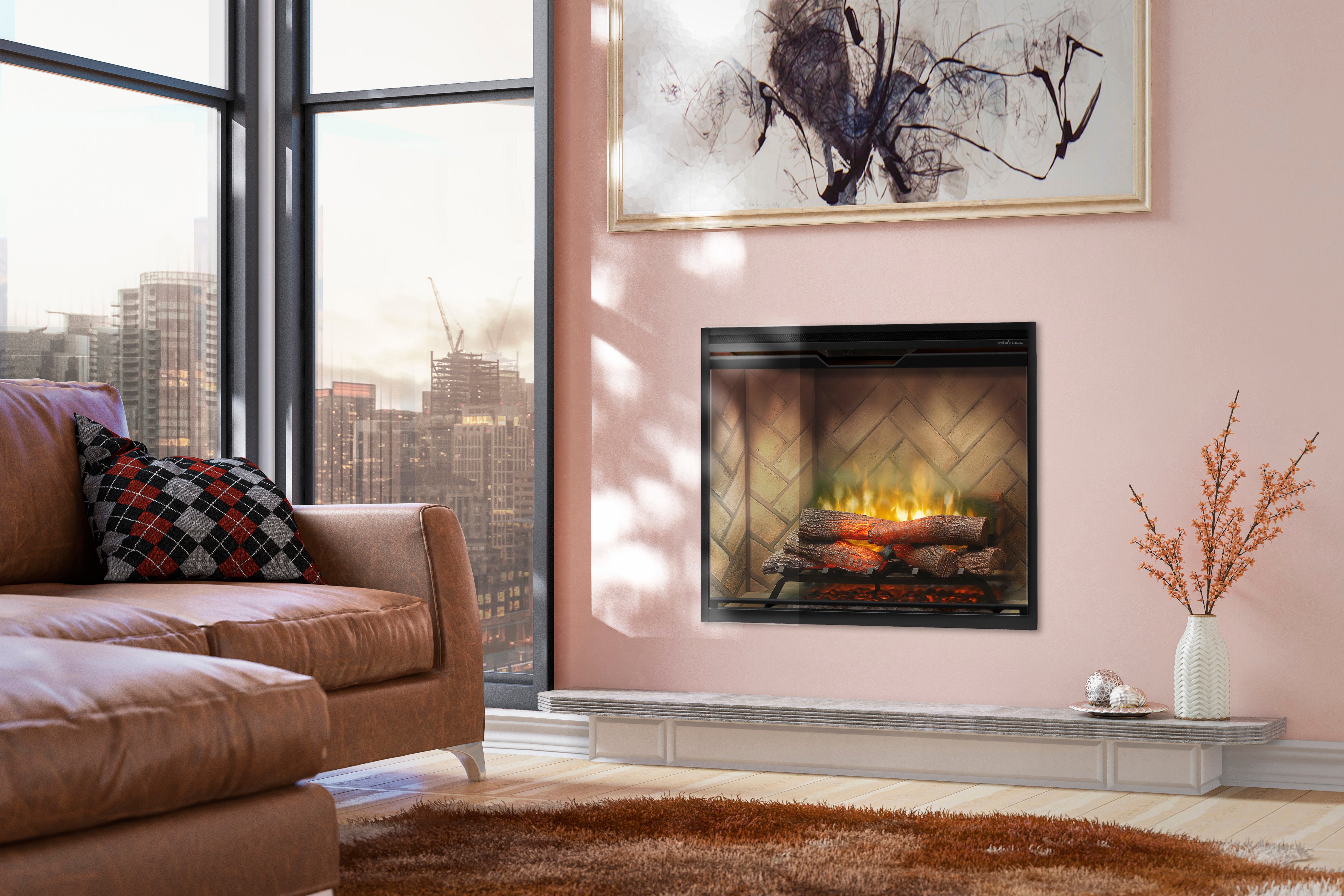

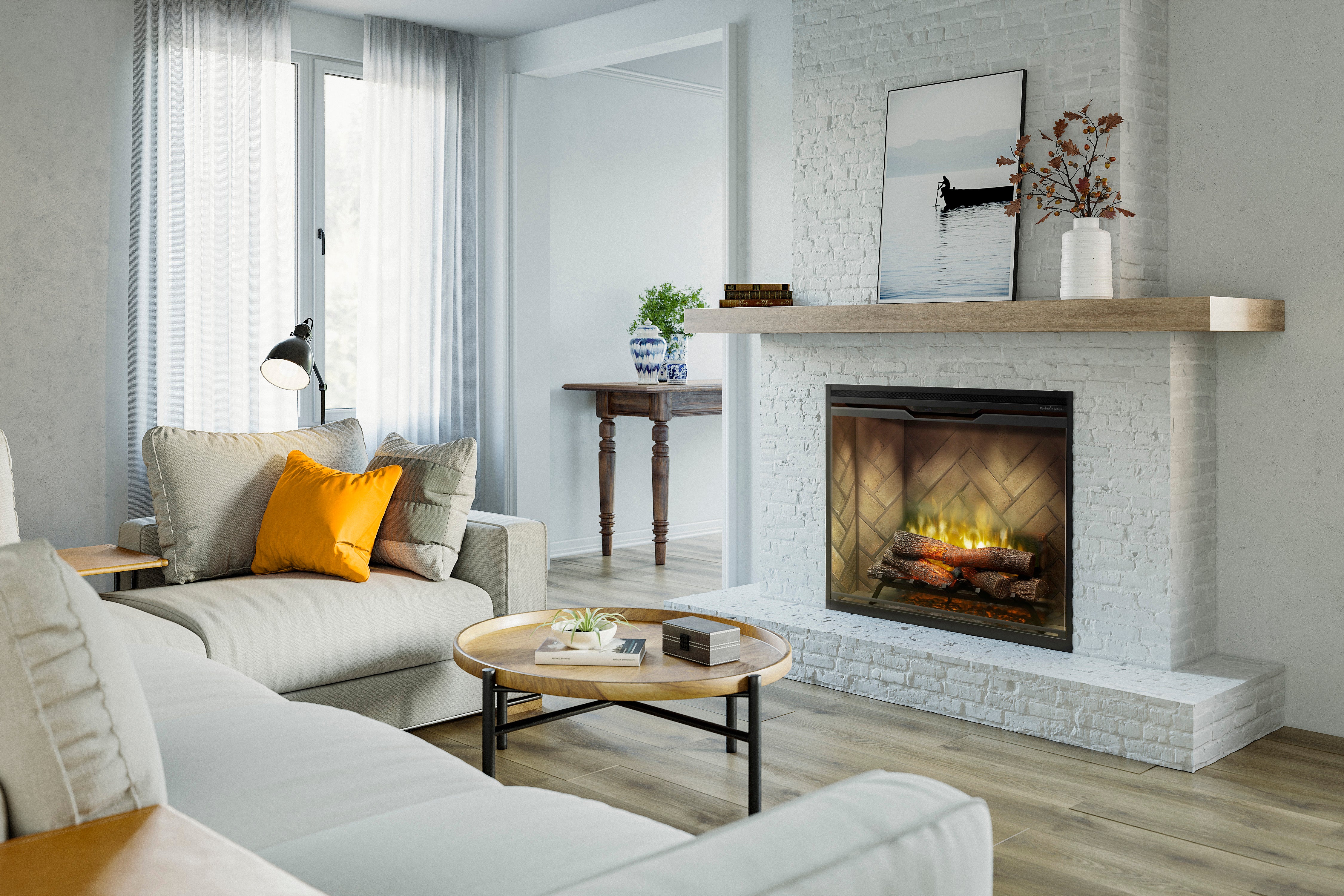

The Dimplex Revillusion 36" Portrait Built-In Firebox brings timeless design and advanced flame technology together in a striking vertical format. With Revillusion Flame Technology, the firebox produces ultrarealistic flames that mimic the depth and movement of a natural wood-burning fire. The handcrafted Realogs® glow and pulsate with LED lighting, while the herringbone brick interior, detailed with natural soot markings, creates a classic and authentic fireplace aesthetic. A single-pane tempered front glass offers a clear, unobstructed view of the fire, while adjustable flame height, brightness levels, and a built-in thermostat let you customize the comfort to your liking. The fan-forced heater delivers supplemental warmth for up to 1,000 sq. ft., or you can enjoy the flame effects without heat for year-round ambiance. Safe and efficient, the cool-touch glass, automatic shut-off, and CSA-certified design ensure peace of mind. With plug-in or hardwire options for 120V/208V/240V installation, the Revillusion 36" Portrait is a versatile and elegant choice for any home.

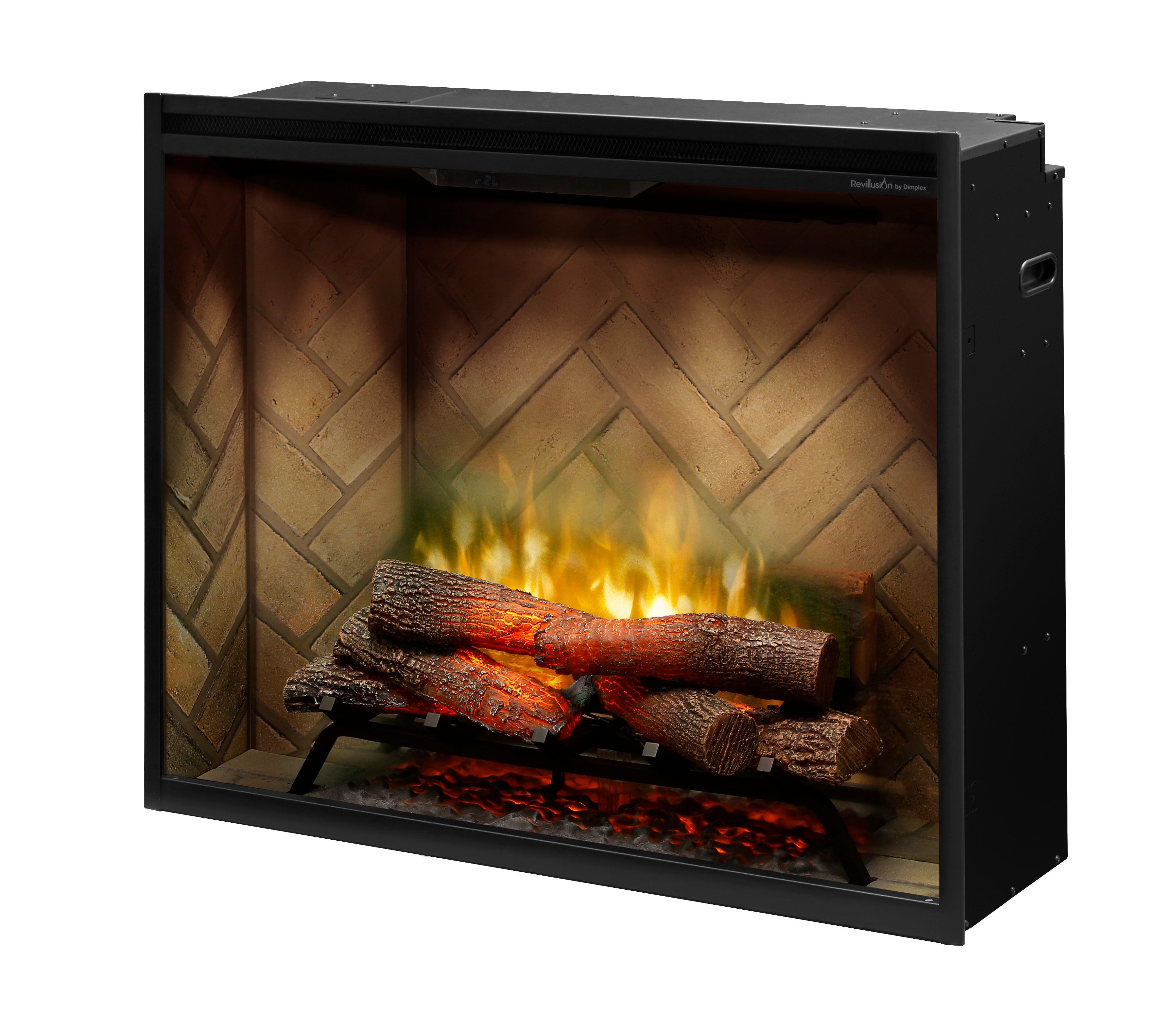

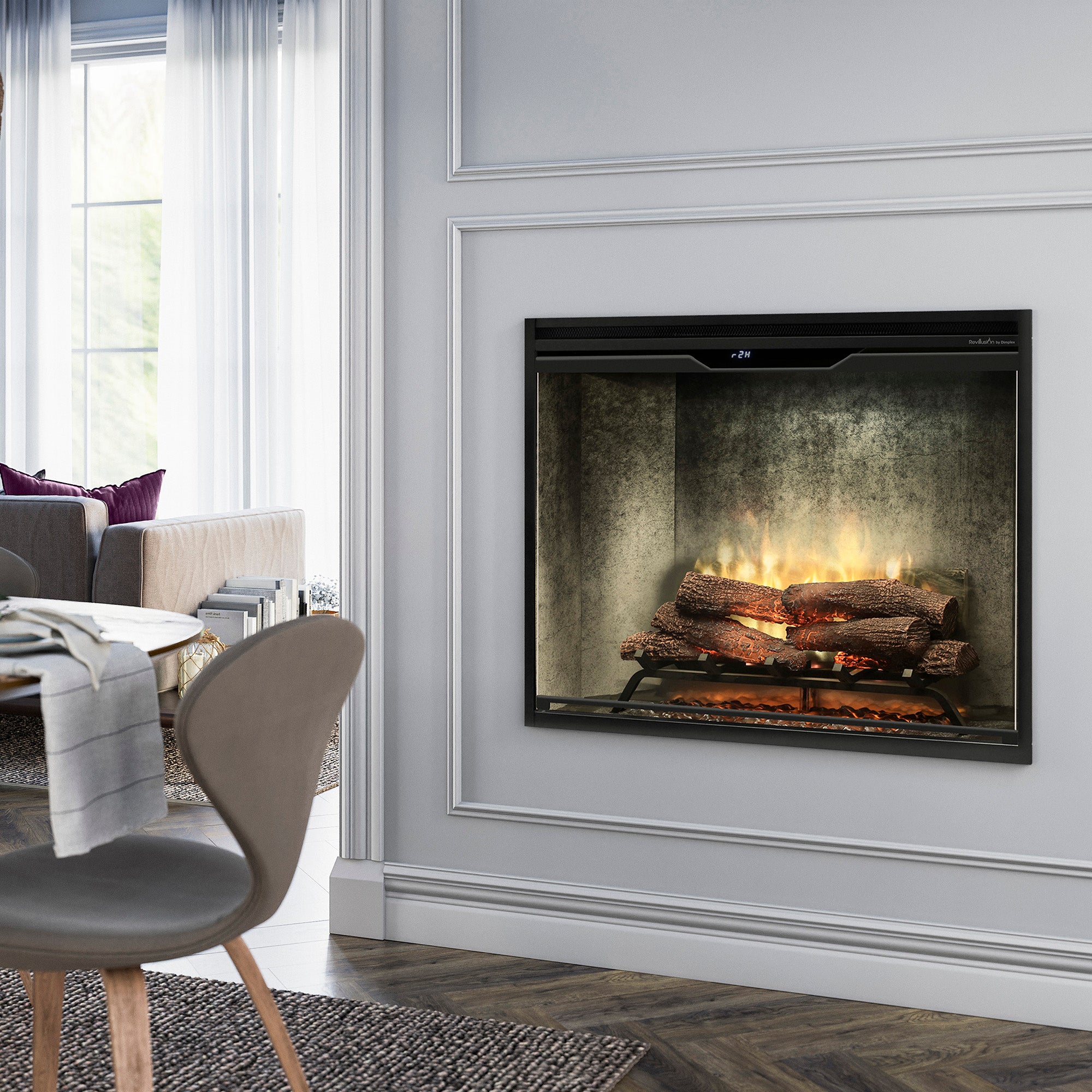

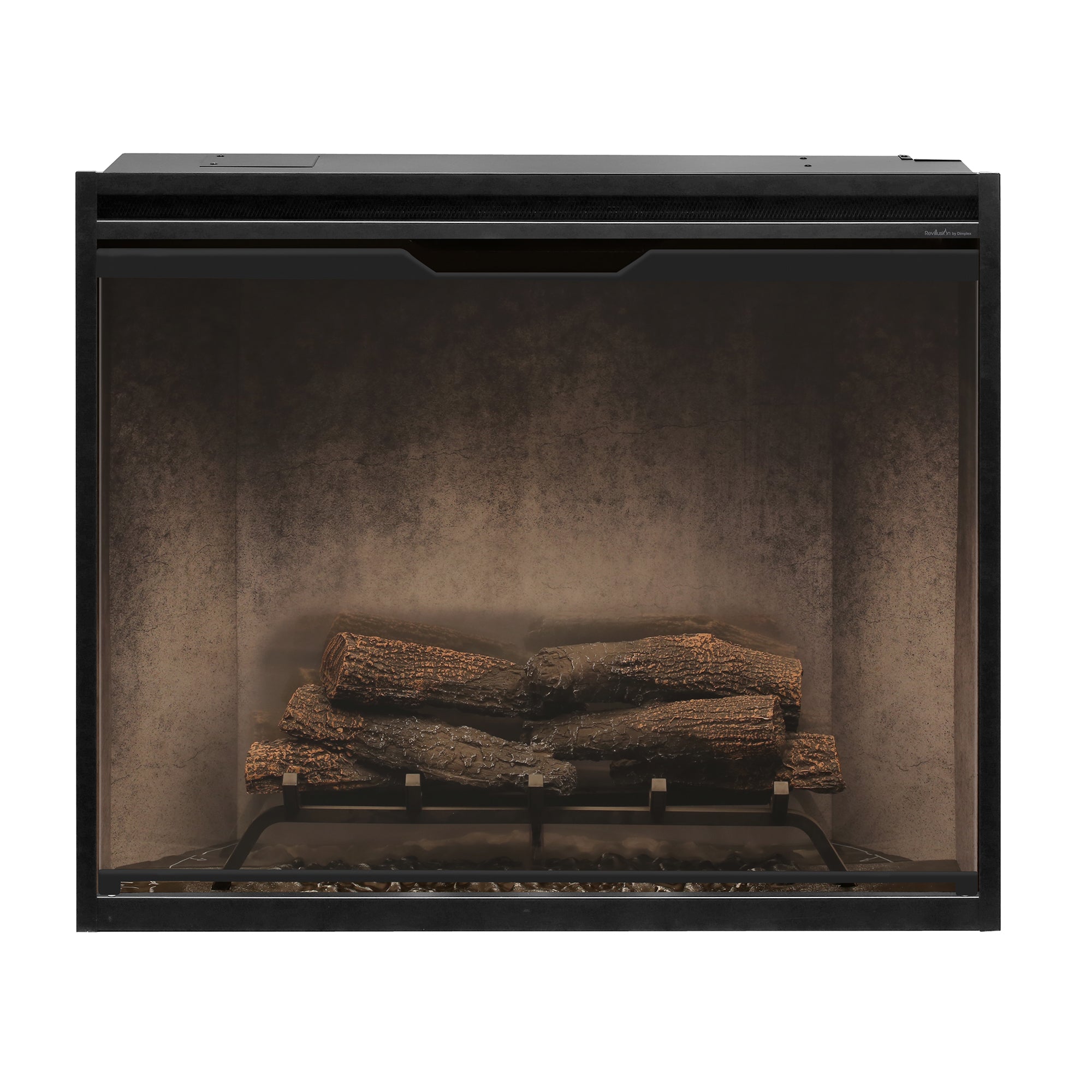

• Revillusion 36" Portrait Built-In Firebox with Herringbone Brick Interior and

  Weathered Concrete

• Realogs

• Single-pane tempered front glass

• 120V plug-in cord kit

• Remote control

• Owner’s guide

• Brand: Dimplex

• Model Name/Series: Revillusion® Portrait

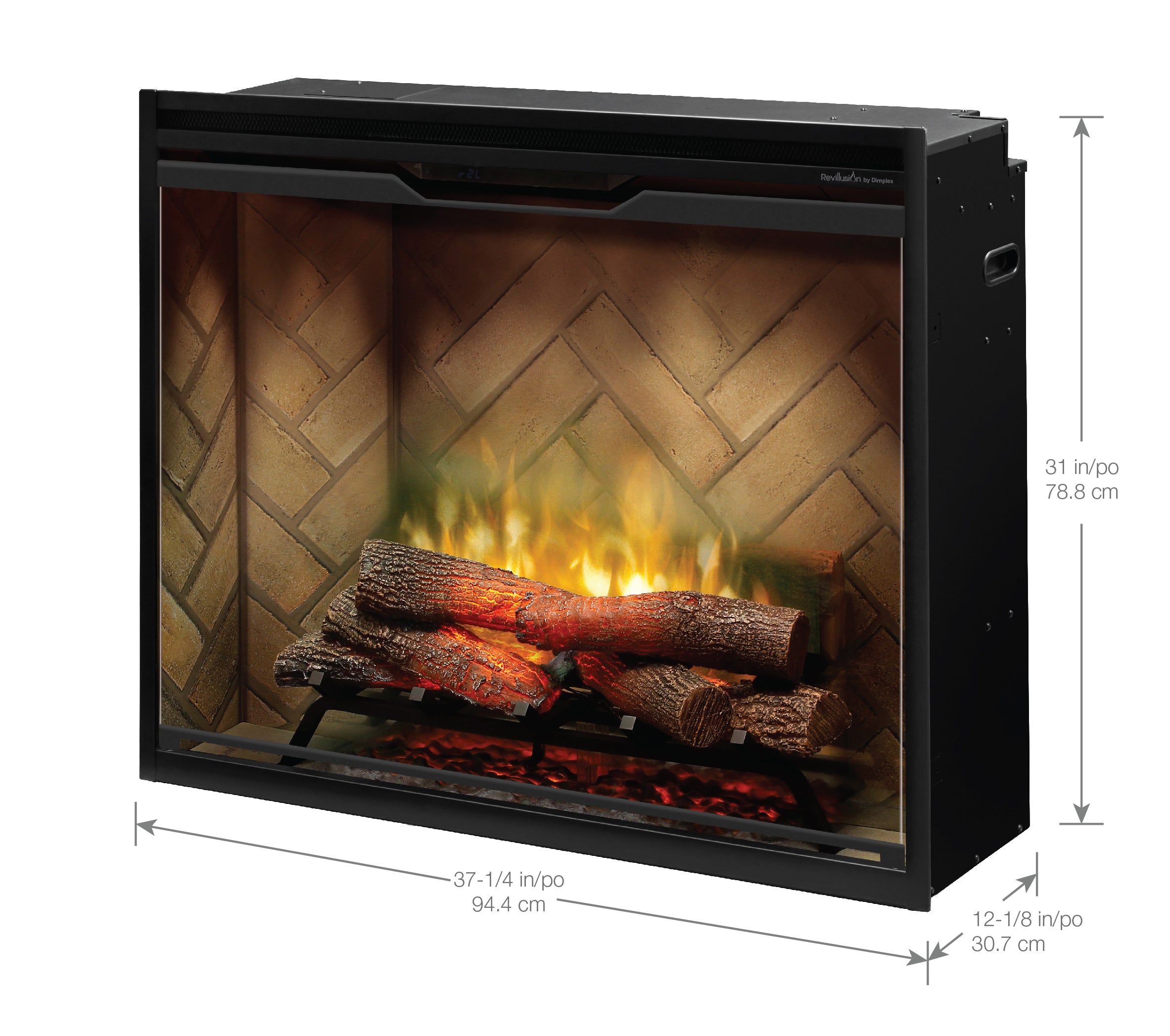

• Product Dimensions (H x W x D): 31 in x 37.17 in x 12.09 in

• Product Weight: 101.86 lb

• Wattage: 1300 / 1975 / 2575 W

• Amps: 10.8 / 9.5 / 10.7

• Voltage: 120 / 208 / 240 V

• BTU Output: 4400 / 6745 / 8794

• Heating Coverage: Up to 1,000 sq. ft.

• Heat/Sq Ft (Primary Source): 321

• Adjustable Brightness: Yes

• Adjustable Flame: Yes

• Built-In Thermostat: Yes

• Automatic Shut-Off: Yes

• Front Glass Type: Tempered

• Heat Vent Location: Front

• Noise Level: 47 dB

• Power Connection: Plug-In / Hard-Wired

• Timer: Yes

• Element Type: Sheath

• Remote Control Battery: CR2032 Lithium-Ion

• Safety Certification File: E71416 v1 s55

• Safety Approvals: Canada, USA
